Solar Based Hot Water Generation

Solar water heating systems include storage tanks and solar collectors. There are two types of solar water heating systems: active, which have circulating pumps and controls, and passive, which don't.

There are two types of active solar water heating systems :

Direct Circulation Systems :
Pumps circulate household water through the collectors and into the home. They work well in climates where it rarely freezes.

Indirect Circulation Systems :
Pumps circulate a non-freezing, heat transfer fluid through the collectors and a heat exchanger. This heats the water that then flows into the home. They are popular in climates prone to freezing temperatures.

Passive solar water heating systems are typically less expensive than active systems, but they're usually not as efficient. However, passive systems can be more reliable and may last longer. There are two basic types of passive systems :

Integral Collector Storage Passive Systems
These consist of a storage tank covered with a transparent material to allow the sun to heat the water. Water from the tank then flows into the plumbing system. These work best in areas where temperatures rarely fall below freezing. They also work well in households with significant daytime and evening hot-water needs.

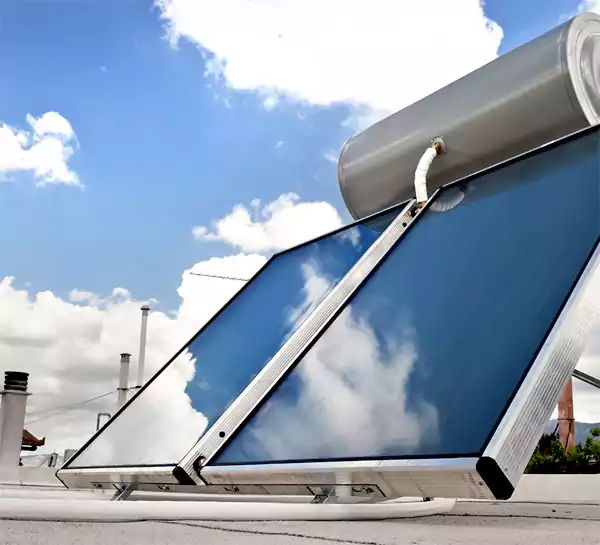

Thermosyphon Systems
Water is heated in a collector on the roof and then flows through the plumbing system when a hot water faucet is opened. The majority of these systems have a 40 gallon capacity.

Most solar water heaters require a well-insulated storage tank. Solar storage tanks have an additional outlet and inlet connected to and from the collector. In two-tank systems, the solar water heater preheats water before it enters the conventional water heater. In one-tank systems, the back-up heater is combined with the solar storage in one tank. Three types of solar collectors are used for residential applications :

Flat Plate Collector
Glazed flat-plate collectors are insulated, weatherproofed boxes that contain a dark absorber plate under one or more glass or plastic (polymer) covers. Unglazed flat-plate collectors typically used for solar pool heating have a dark absorber plate, made of metal or polymer, without a cover or enclosure.

Integral Collector Storage Systems
Also known as ICS or batch systems, they feature one or more black tanks or tubes in an insulated, glazed box. Cold water first passes through the solar collector, which preheats the water. The water then continues on to the conventional backup water heater, providing a reliable source of hot water. They should be installed only in mild freeze climates because the outdoor pipes could freeze in severe, cold weather.

Evacuated Tube Solar Collectors
They feature parallel rows of transparent glass tubes. Each tube contains a glass outer tube and metal absorber tube attached to a fin. The fin's coating absorbs solar energy but inhibits radiative heat loss. These collectors are used more frequently for U.S. commercial applications.

Solar water heating systems almost always require a backup system for cloudy days and times of increased demand. Conventional storage water heaters usually provide backup and may already be part of the solar system package. A backup system may also be part of the solar collector, such as rooftop tanks with thermosyphon systems. Since an integral-collector storage system already stores hot water in addition to collecting solar heat, it may be packaged with a tankless or demand-type water heater for backup.

Before you purchase and install a solar water heating system, you want to do the following :
